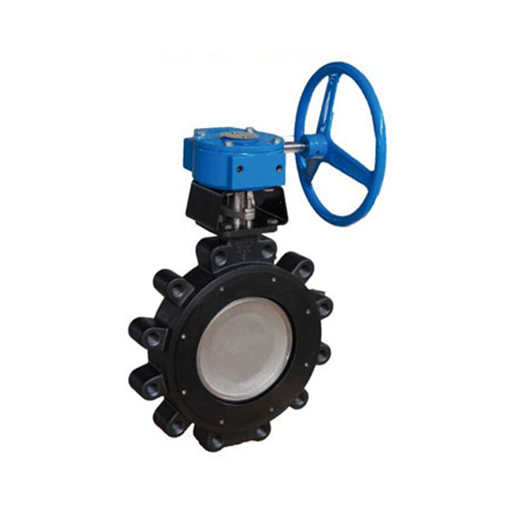

High Performance Butterfly Valve

High Performance Butterfly Valve

High Performance Butterfly Valve offers exceptional sealing and flow control in demanding applications. Designed for high-pressure and high-temperature environments, it ensures tight shutoff and long-term durability. Ideal for industries such as oil, gas, and water treatment, this valve provides reliable performance with minimal maintenance. Available in various sizes and materials to suit specific system requirements.

分类： 标签：

Specification

Part Name Material
Body ASTM A351 CF8M
Seat PTFE
Disc ASTM A351 CF8M
Seat Retainer Plate ASTM A351 CF8M
Packing Washer PTFE
Gland ASTM A351 CF8M
Key Carbon Steel
Mounting Plate ASTM A351 CF8M

Dimensions Data

DN A B ASME CLASS 150 ASME CLASS 300 ΦD H Φd ΦE 4-ΦG
C
2.5″ 155 70 48 48 120 32 16 70 10
3″ 175 76 48 48 130 32 16 70 10
4″ 176 92 54 54 160 32 19 70 10
6″ 225 125 57 59 215 32 20 70 10
8″ 267 150 64 73 273 45 26 102 12
10″ 276 175 71 83 325 45 32 125 13
12″ 320 240 81 92 375 45 36 125 13



Standard

API609,EN12266-1,MSS SP-68
Size

DN50~DN600mm (1/2"-24")
Pressure

Class150-Class300
Suitable Mediums

water , oil , gas,steam
Body Material

Carbon Steel A216 WCB/A105 ,Stainless steel
Type

wafer ,lug
